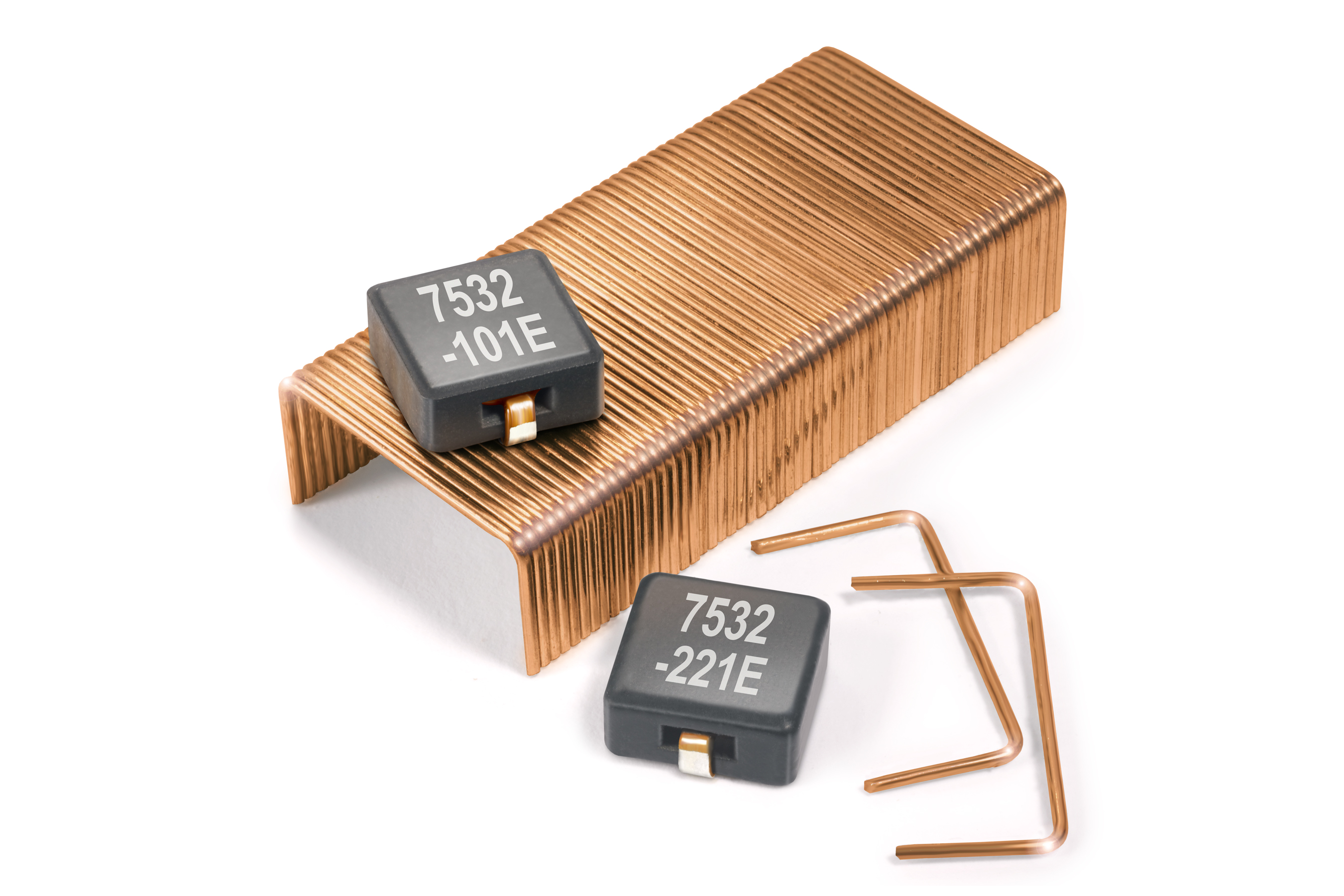

Cary, IL, USA — Coilcraft's new MLC75xx Series of shielded, high-current power inductors offer Isat ratings up to 59.2 Amps and DC resistance down to 1.2 mOhms for greater efficiency. Their soft saturation characteristics make them ideal for VRM/VRD designs and other applications with occasional overcurrent requirements.

The compact, surface mount MLC75xx Series measures just 7.0 X 7.5 mm, with a maximum height of 4.2 mm.  Coilcraft offers the series in seven inductance values ranging from 0.10 to 2.17 µH. MLC75xx Series inductors feature RoHS compliant tin-silver (96.5/3.5) over copper terminations and offer a maximum reflow temperature of 260°C. They are also constructed of proprietary materials that are not subject to thermal aging issues associated with other iron powder core inductors.

As with all Coilcraft parts, free evaluation samples are available online at www.coilcraft.com. Parts are available from stock and can be ordered online at buy.coilcraft.com or by calling Coilcraft sales.

For more information about the MLC75xx Series, contact Len Crane, +1-847-639-6400, lcrane@coilcraft.com.

About Coilcraft

Headquartered outside of Chicago in Cary, Illinois, Coilcraft is a leading global supplier of magnetic components including high performance RF chip inductors, power magnetics and filters. In addition to a large selection of standard components, Coilcraft also designs and builds custom magnetics to fit a customer’s exact electrical requirements.

Engineers and buyers consider Coilcraft a preferred supplier because of its reputation for quality, reliable delivery, engineering support and the superior performance of our products. In independent surveys, engineers consistently rank Coilcraft the number one magnetics company they would recommend to a friend.
