PRESS RELEASE

April 8, 2014

Planar Transformers Combine High Efficiency, Excellent DCR and Very Low Leakage Inductance

Cary, IL, USA - Coilcraft has released two new series of surface mount planar transformers for power over Ethernet (PoE) and -48V network power applications. The PL160 Series is rated for 160 Watts between 200 kHz and 700 kHz with a nominal 48 V input, and the PL300 Series is rated to 300 Watts.

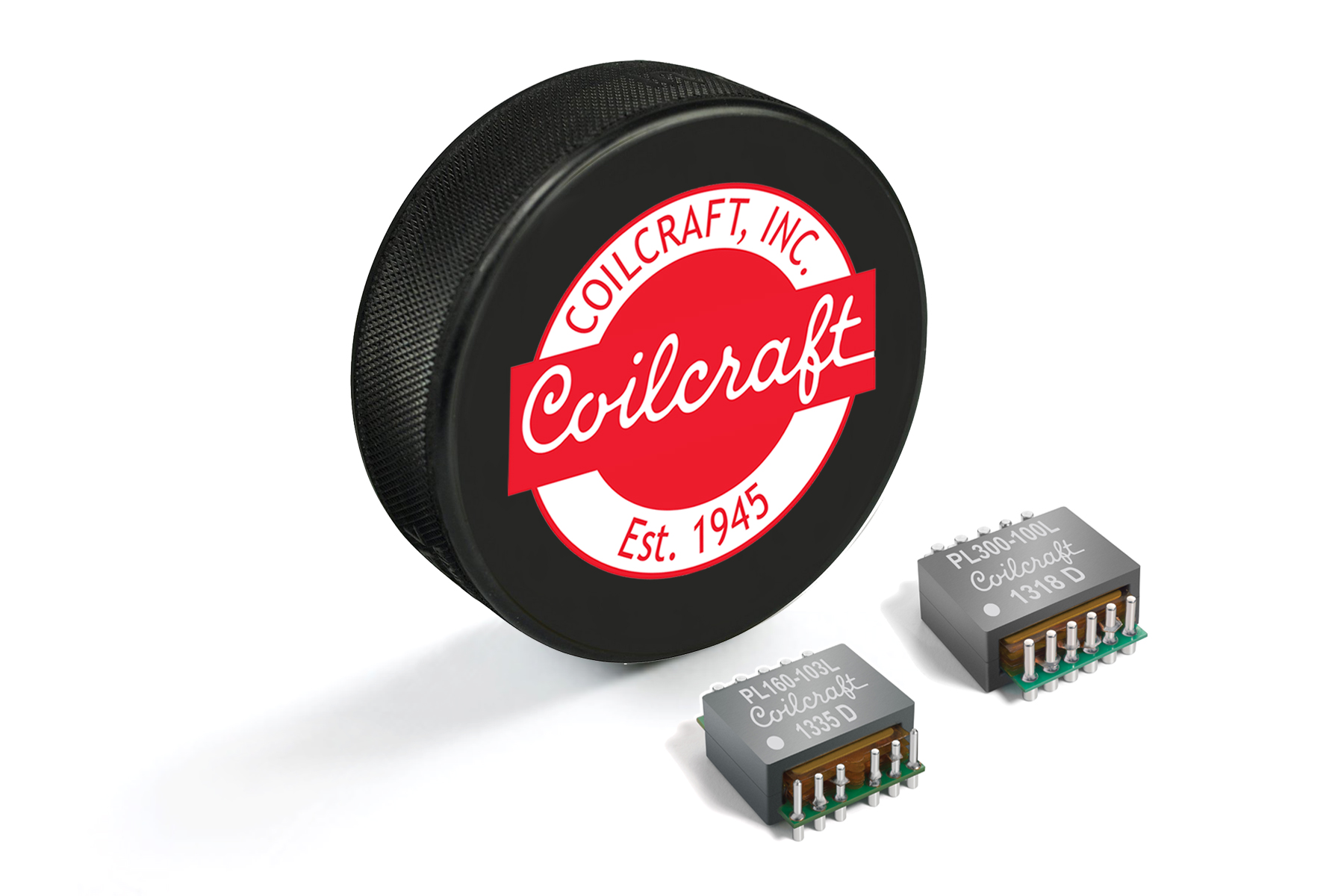

PlanarBoth product series offer high efficiency, excellent DCR (as low as 7.2 mOhms), and very low leakage inductance (as low as 0.20 µH). They also provide 1500 Vrms primary-to-secondary isolation and 0.009 inch (0.229 mm) clearance above the seating plane. Both are RoHS compliant and feature matte tin over nickel over brass terminations. Both series can also be special ordered with an optional auxiliary winding.

As with all Coilcraft parts, complete technical specifications and free evaluation samples are available online at www.coilcraft.com/pl160 for the PL160 Series and www.coilcraft.com/pl300 for the PL300 Series.

Parts are available from stock and can be ordered on-line at buy.coilcraft.com or by calling a local Coilcraft sales office.

For more information, contact Len Crane, +1-847-639-6400, lcrane@coilcraft.com.


About Coilcraft

Headquartered outside of Chicago in Cary, Illinois, Coilcraft is a leading global supplier of magnetic components including high performance RF chip inductors, power magnetics and filters. In addition to a large selection of standard components, Coilcraft also designs and builds custom magnetics to fit a customer’s exact electrical requirements.

Engineers and buyers consider Coilcraft a preferred supplier because of its reputation for quality, reliable delivery, engineering support and the superior performance of our products. In independent surveys, engineers consistently rank Coilcraft the number one magnetics company they would recommend to a friend.
